ShiBo 360mm Ridge Cap Colored Steel Roll Forming Machine Custom Color
1. Introduction to ShiBo 360mm Ridge Cap Colored Steel Roll Forming Machine Custom Color :
1) Our product adopt the good rawmaterial.
2) Our products adopt new cutting technology.
3) The service life of the machine is long.
4) The product speed is faster than the normal machine.
2. The Parameter of ShiBo 360mm Ridge Cap Colored Steel Roll Forming Machine Custom Color:
| No. | Main parameter of roll forming machine |
| 1 | Suitable material | Colored steel galvanized sheet |
| 2 | Cutter material | Cr.12 |
| 3 | Main framer | 350 H steel |
| 4 | Product speed | 8~15m/min |
| 5 | Thickness of raw material | 0.3~0.8mm |
| 6 | Out diameter of shaft | 75mm |
| 7 | Voltage | 220V/380V/440V |
| 8 | Transportation system | Chain transportation |
| 9 | Weight | about 3T |
| 10 | Size | 5000*800*1200mm |
| 11 | Roller station | 12rows |
| 12 | All nut and bolt | 8.8 grade |
| 13 | Use | roof |
| 14 | Type | Ridge Cap Roll Forming Machine |
| 15. | Roller material | 45# forged steel |
3.The uses of ShiBo 360mm Ridge Cap Colored Steel Roll Forming Machine Custom Color :
1) Suitable for industrial and civil buildings, special warehouse buildings.
2) Roof, wall and exterior decoration of large-span steel structure houses.
3) Used in steel construction, popular in many countries and regions.
4.The characteristics of ShiBo 360mm Ridge Cap Colored Steel Roll Forming Machine Custom Color:
1)The product produced by this machine is not only dignified and elegant, but also beautiful and novel, with a smooth appearance and even ripple.
2)High utilization rate, high intensity.
3)High degree of production automation.
4)Low cost and durable.
5)Good quality and low price
5. Our service for this machine
A. Engineers available to service machinery overseas.
B. If you come to visit our factory,we can pick up you, arrange your accommodation.
C. One-Year product warranty.
D. Training and installation available.
E. The technical support for the whole life.
6.FAQ
Q:Do u have after sales support?
A: Yes.we are happy to give advice and we also have skilled technicians available across the world.we need your machines running in order to keep your business running.
Q:What can u do if the machine broken?
A: Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but u need pay the express cost yourself.If after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Welcom to get your inquiry anytime.

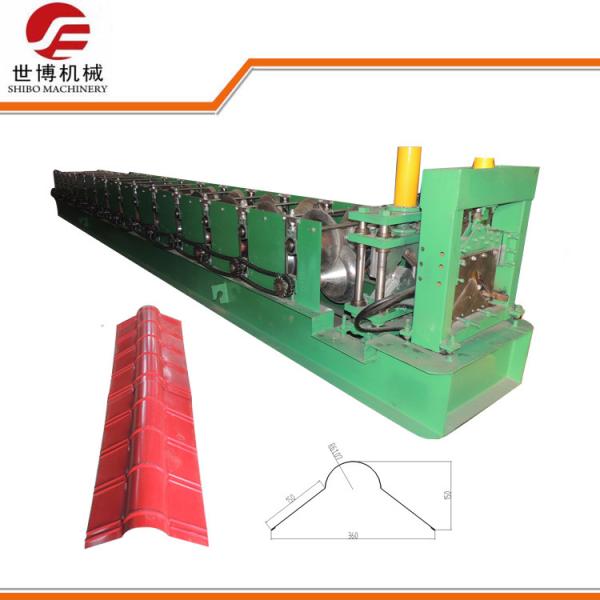

7.The picture is for reference
